SENSITRONICS FTR

FTR

The FTR (Force-Transducing-Rubber) and the force-sensing-resistor are proportional sensors. When force or pressure is applied, the resistance of the sensor will change over a range of meg-ohms to K-ohms. There is a smooth and controlled change in the electrical output when force is applied. When the force or pressure is removed, the sensor recovers. The operating force ranges from 50 - 500 grams. The range can be extended by means of mechanical actuation systems.

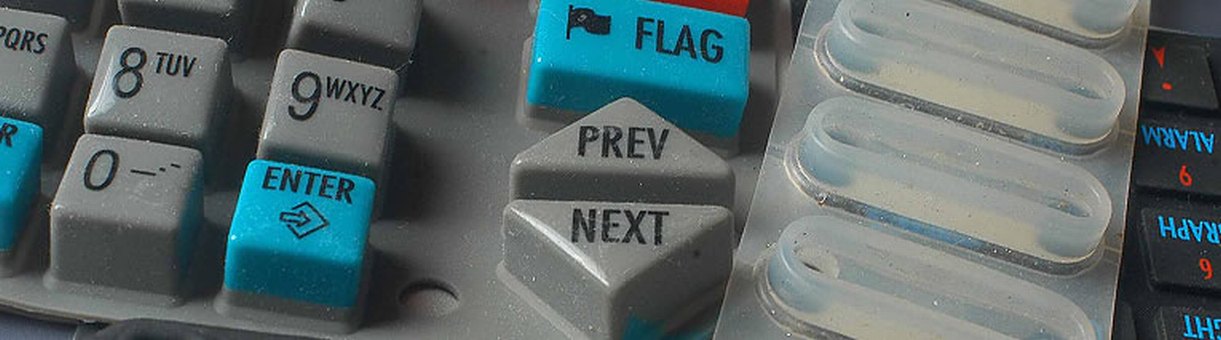

The FTR can be formed into compound curves. It has a greater dynamic range than the FSR because of the additional volumetric response to force, and can be very cost effective when FTR-Pills are used in our complete elastomer sensor system.

TRANSLUCENT FSR
We have Translucent FSR for back-lighted sensors. More information upon request.

CLEAR FSR
Our latest contribution to the FSR family of products is our Patent Pending ClearAsGlass-FSR sensor. More information upon request.
